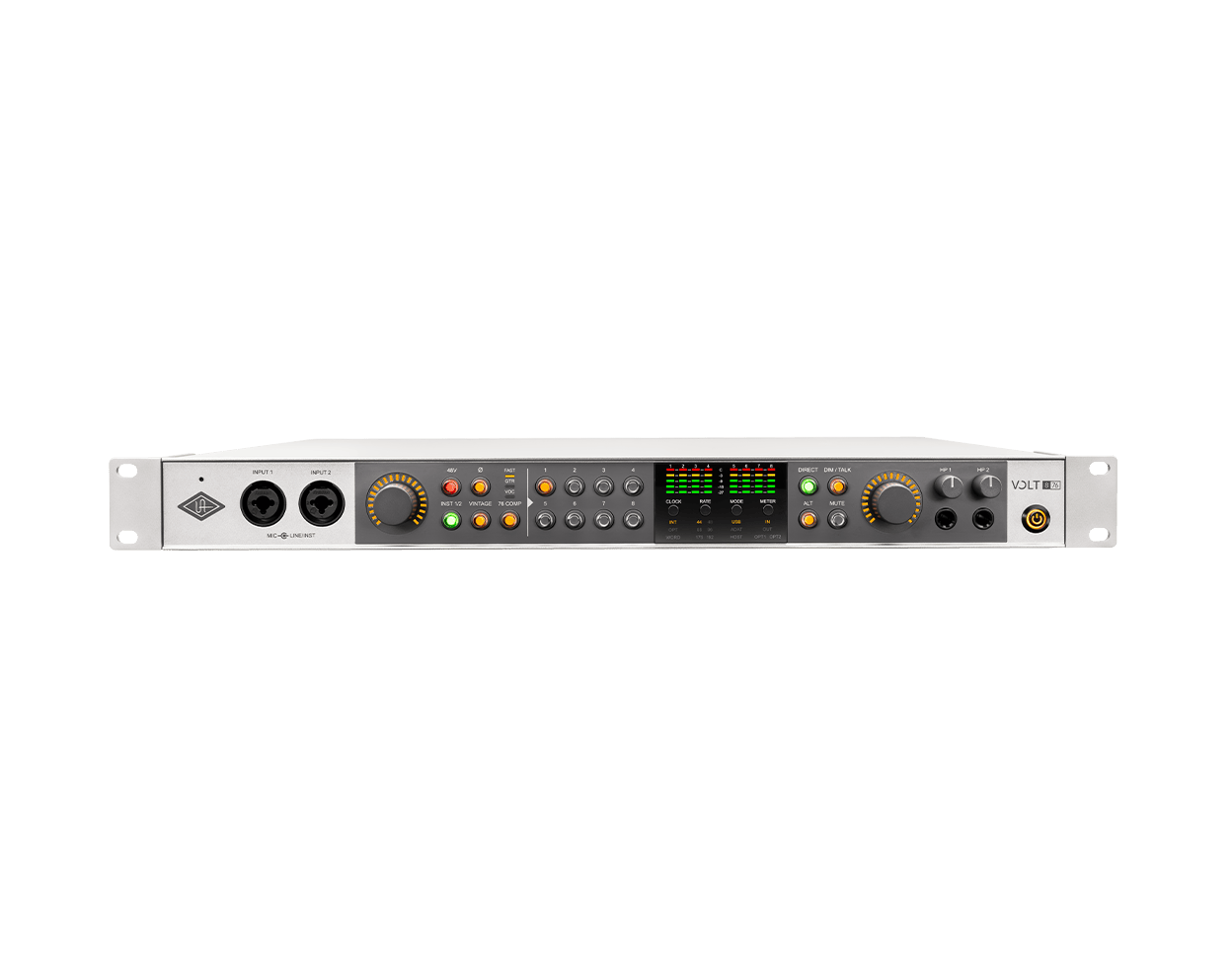

Universal Audio Volt 876 24x28 USB-C Audio Interface

Bring classic Universal Audio character to full-band and multichannel recording with the Universal Audio Volt 876. This 1U rackmount USB-C audio interface combines eight digitally controlled microphone preamps, selectable Vintage preamp coloration, and analog 76 compression on every input with professional 32-bit/192 kHz audio conversion.

Designed for studios, producers, bands, houses of worship, and content-production environments, Volt 876 provides the analog and digital connectivity needed to record larger sessions while keeping monitoring and setup straightforward. Assistive Auto-Gain, session recall, two independent cue mixes, and an integrated talkback microphone help streamline recording sessions with multiple performers.

Classic UA Sound Across Eight Inputs

Each of the eight microphone preamps includes a selectable Vintage mode inspired by the warmth and presence of Universal Audio's classic 610 tube console. Every channel also includes an analog 76 Compressor with Voice, Guitar, Fast, and Off settings inspired by the legendary UA 1176 limiting amplifier.

Key Features

• 24-input/28-output USB audio interface
• Professional 32-bit/192 kHz A/D and D/A conversion
• Eight digitally controlled mic/line preamps with 60 dB of gain
• Two front-panel inputs with switchable Hi-Z instrument operation
• Selectable Vintage preamp mode on every analog input
• Analog 76 Compressor on every input with Voice, Guitar, Fast, and Off settings
• Assistive Auto-Gain for faster recording-level setup
• Eight balanced analog line outputs, including main monitor outputs
• Two independently controlled stereo headphone outputs
• Up to 16 channels of ADAT optical input and output at 44.1 or 48 kHz
• Optical S/PDIF input and output
• MIDI input and output
• BNC word-clock input with switchable 75-ohm termination
• Built-in talkback microphone
• Two low-latency cue mixes through UAD Console or LUNA
• Standalone ADAT mode for use as an 8-channel preamp and converter
• Expandable with up to three Volt 876 interfaces for 24 analog preamps
• Included rack ears and rubber feet for rackmount or desktop installation

Hardware Specifications

• Analog inputs: Eight XLR/TRS combo inputs
• Instrument inputs: Two switchable front-panel Hi-Z inputs
• Analog outputs: Eight balanced 1/4-inch TRS line outputs
• Headphone outputs: Two stereo 1/4-inch outputs
• Digital I/O: ADAT and optical S/PDIF
• Computer connection: USB 2.0 through a USB Type-C connector
• Sample rates: 44.1, 48, 88.2, 96, 176.4, and 192 kHz
• Bit depth: 32-bit
• Microphone preamp gain: 60 dB
• Phantom power: +48V, selectable per channel
• Power requirement: 100-240V AC, 50-60 Hz
• Maximum power consumption: 35W
• Rack size: 1U
• Dimensions: 17 x 13.1 x 1.7 inches
• Product weight: 9.0 lb

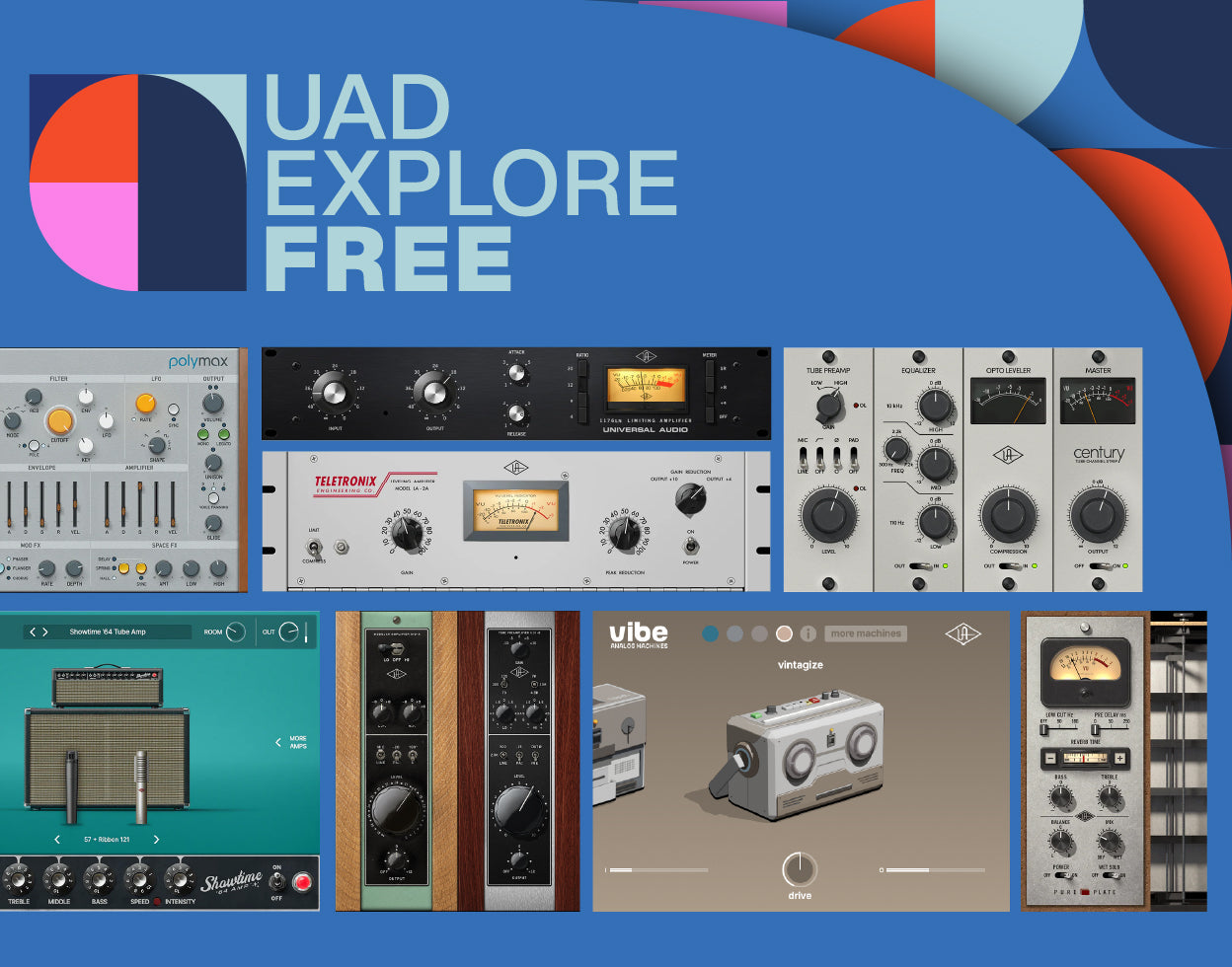

Included Software

• LUNA Digital Audio Workstation
• UA 610 Tube Preamp & EQ Collection
• UA 1176 Classic FET Compressor
• Teletronix LA-2A Tube Compressor
• Century Tube Channel Strip
• Vibe Analog Machines Essentials
• Pure Plate Reverb
• Showtime '64 Tube Amp
• PolyMAX Synth
• Additional third-party recording and production software

Included software titles and redemption terms are subject to change by the manufacturers.

What's in the Box

• Universal Audio Volt 876 audio interface
• Region-specific IEC AC power cable
• 1.5-meter USB-C cable with attached USB-A adapter
• Two 19-inch rack ears and mounting screws
• Four attachable rubber feet and mounting screws
• Getting-started information
• Safety and licensing documentation

Compatibility Notes

• Compatible with supported Mac, Windows, iPad, and iPhone systems
• Windows operation requires the Volt 876 driver installed through UA Connect
• Mobile devices may require a separately available adapter
• Volt 876 requires AC power and cannot be powered through USB
• Volt 876 does not contain onboard UAD-2 DSP; plug-in processing runs on the connected computer
