Universal Audio Apollo x16D 18x20 Thunderbolt 3 Audio Interface with Dante – Essentials Edition
Universal Audio Apollo x16D 18x20 Thunderbolt 3 Audio Interface with Dante – Essentials Edition
Couldn't load pickup availability
Premium member benefits
Premium Membership Save more with Premium Get 5% off eligible gear + earn 3% Rewards.PAC Product Snapshot
AI-assistedBased on manufacturer specifications.
- At a glance
- A rackmount Thunderbolt 3 interface with Dante, onboard UAD HEXA DSP, and the Essentials plug-in bundle.
- Best for
- Networked studios and live rigs that need Dante routing and UAD processing with the Essentials bundle.
- Why consider it
- It combines network audio and dedicated plug-in processing in one rack space.
Before You Buy
Plan for external mic preamps, a compatible Dante network, and a Thunderbolt host. Confirm which plug-ins Essentials includes.
More details
Before You Buy
- Match the interface connection, operating system and driver requirements to your computer.
- Count physical microphone preamps separately from total inputs and outputs.
Delivery & return information
Free standard shipping: no minimum on eligible contiguous U.S. orders.
Orders generally process within one business day, Monday–Friday, excluding holidays. Processing is separate from carrier transit. Backorders, special orders and supplier fulfillment may take longer; confirm timing before ordering for a deadline.
Shipping details · Return eligibility & fees · Check availability or delivery timing

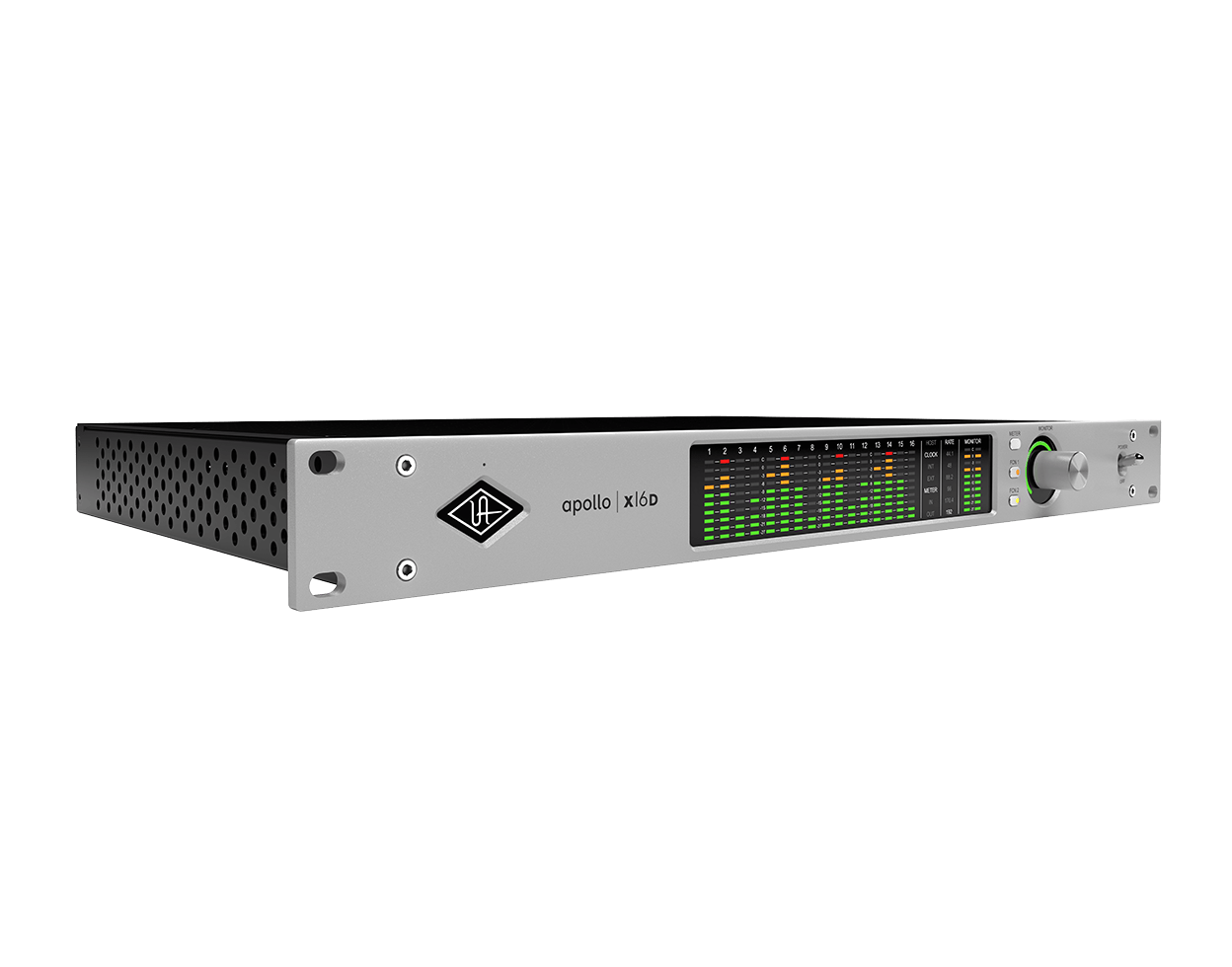

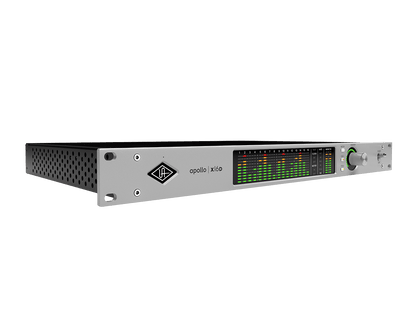

Bring realtime UAD processing to Dante-networked studios, venues, and broadcast systems with the Universal Audio Apollo x16D Essentials Edition. This 18x20 Thunderbolt 3 interface combines 16x16 Dante/AES67 networking, flagship Apollo X monitoring conversion, and onboard HEXA Core DSP.
Built for professional recording, live sound, broadcast, and post-production workflows, the Universal Audio Apollo x16D combines premium conversion with realtime UAD processing and flexible monitoring in a 1U rackmount design.
Key Features
- 18x20 Thunderbolt 3 audio interface
- 16x16 Dante I/O with AES67 operation at 48 kHz

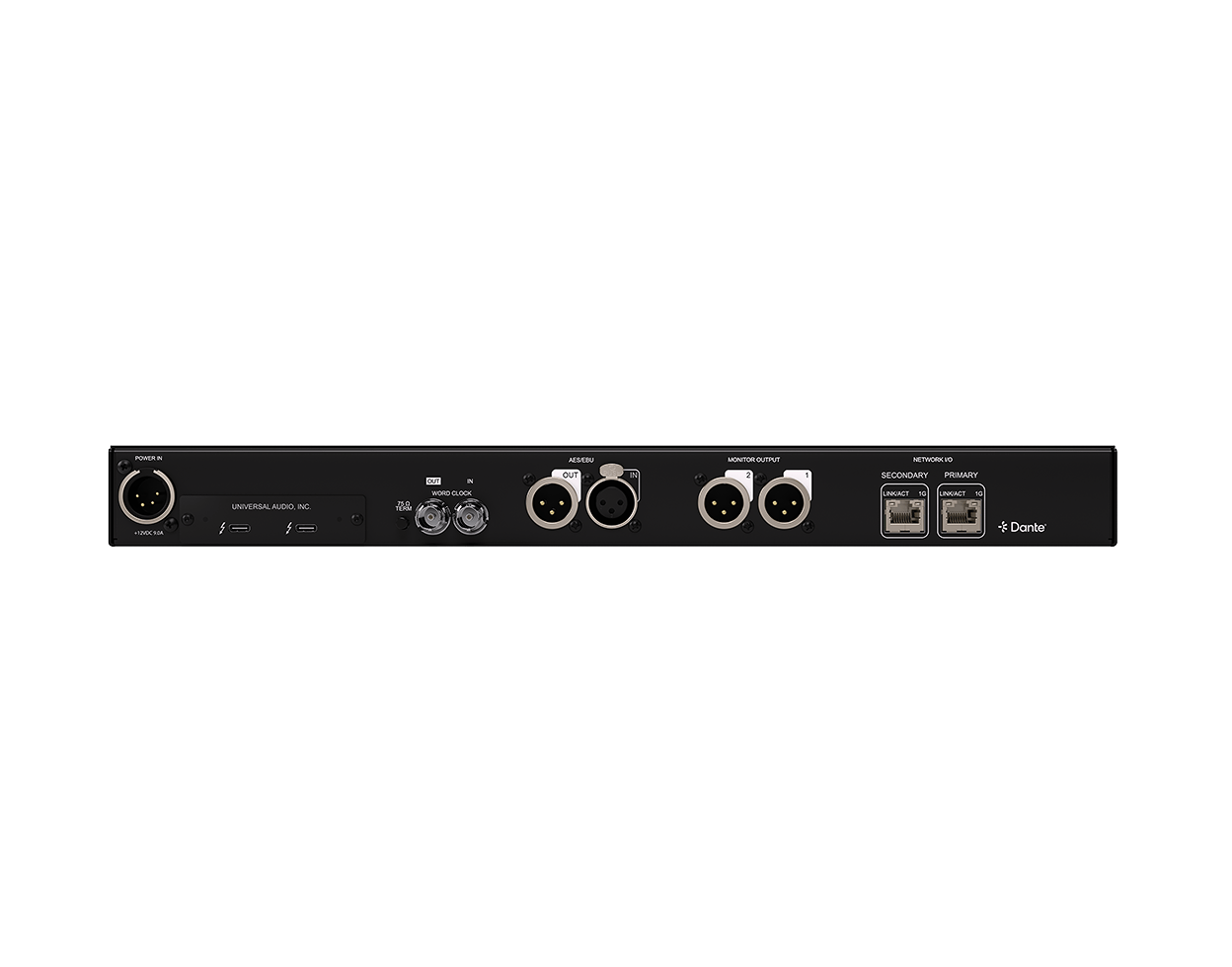

- Stereo AES/EBU digital input and output
- 24-bit/192 kHz conversion
- 133 dB dynamic range on the main monitor outputs
- HEXA Core UAD-2 DSP for realtime plug-in processing
- Plug-In Scenes recall through UAD Console and MIDI
- Immersive monitor control for formats up to 9.1.6
- Dante switched or redundant network modes

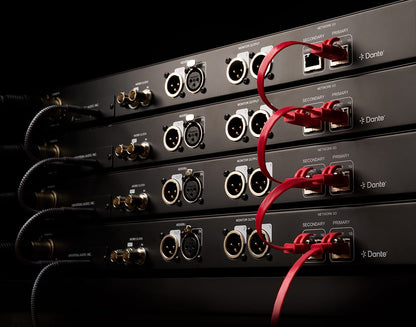

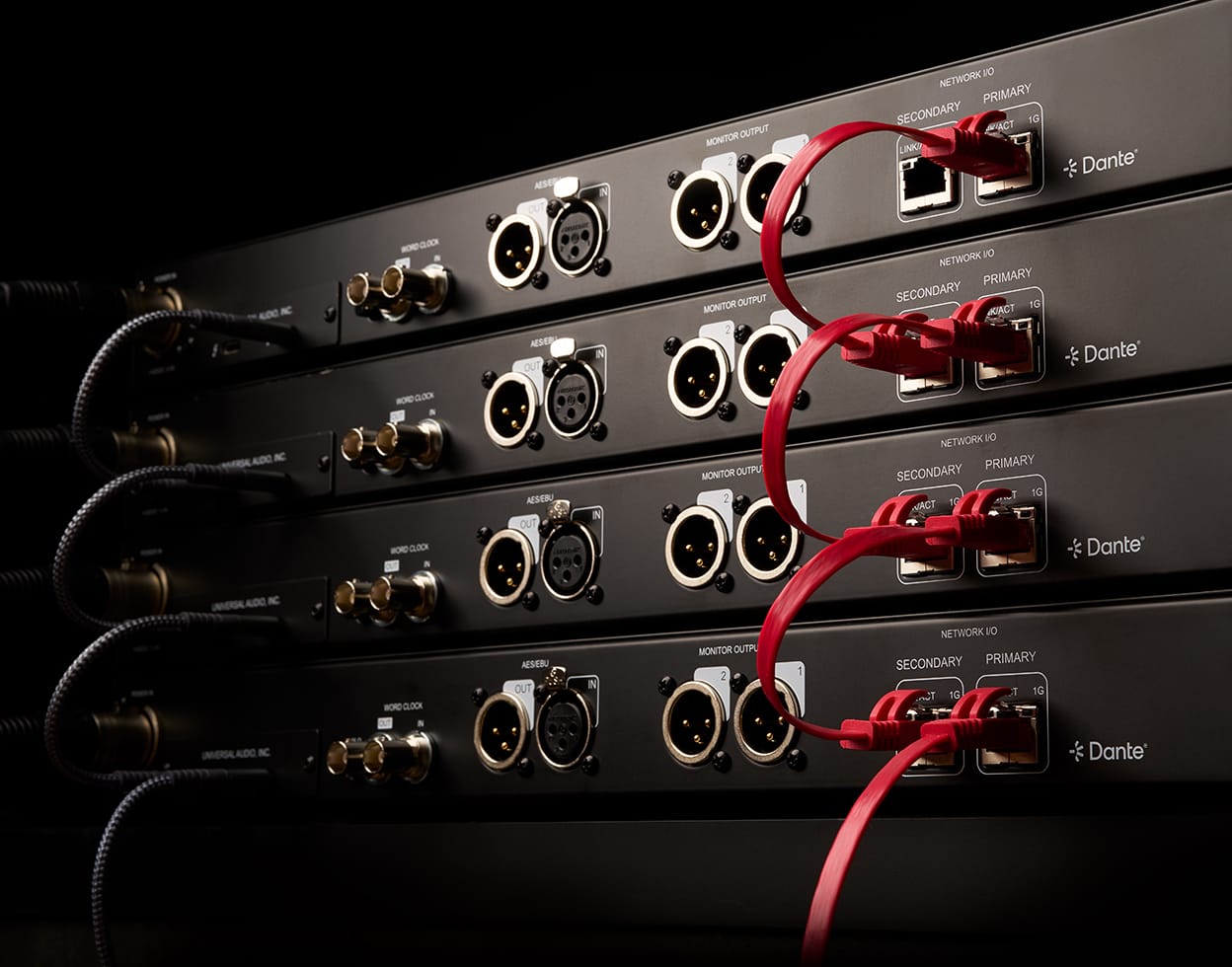

- Link up to four x16D interfaces for up to 64 Dante channels at 96 kHz
- Integrated talkback and alternate-speaker monitoring
- No onboard microphone preamps; pair with Dante or AES front-end equipment
Essentials Software Edition
The Essentials Edition supplies a focused collection of UAD processing tools for recording, mixing, and live production. Included software titles and redemption terms are controlled by Universal Audio and may change.
Compatibility Notes
- Requires a compatible Thunderbolt 3 or Thunderbolt 4 computer connection.
- Compatible with supported macOS and Windows systems; verify the current Universal Audio operating-system compatibility list before purchase.
- UAD DSP plug-ins run on the interface for near-zero-latency monitoring; native UAD plug-ins run on the host computer.
- Thunderbolt adapters, Dante network hardware, DB-25 breakout cables, and other application-specific accessories may be required and are sold separately unless expressly listed.
What’s in the Box
- Universal Audio Apollo x16D audio interface
- Power cable or power supply appropriate to the model
- Thunderbolt cable
- Getting-started and safety documentation
Manuals & Documentation
Read the manufacturer documentation for this model, or save an available PDF for setup and technical reference.
