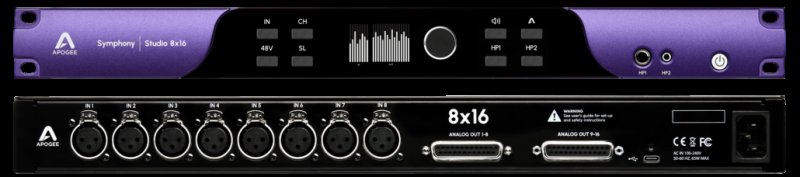

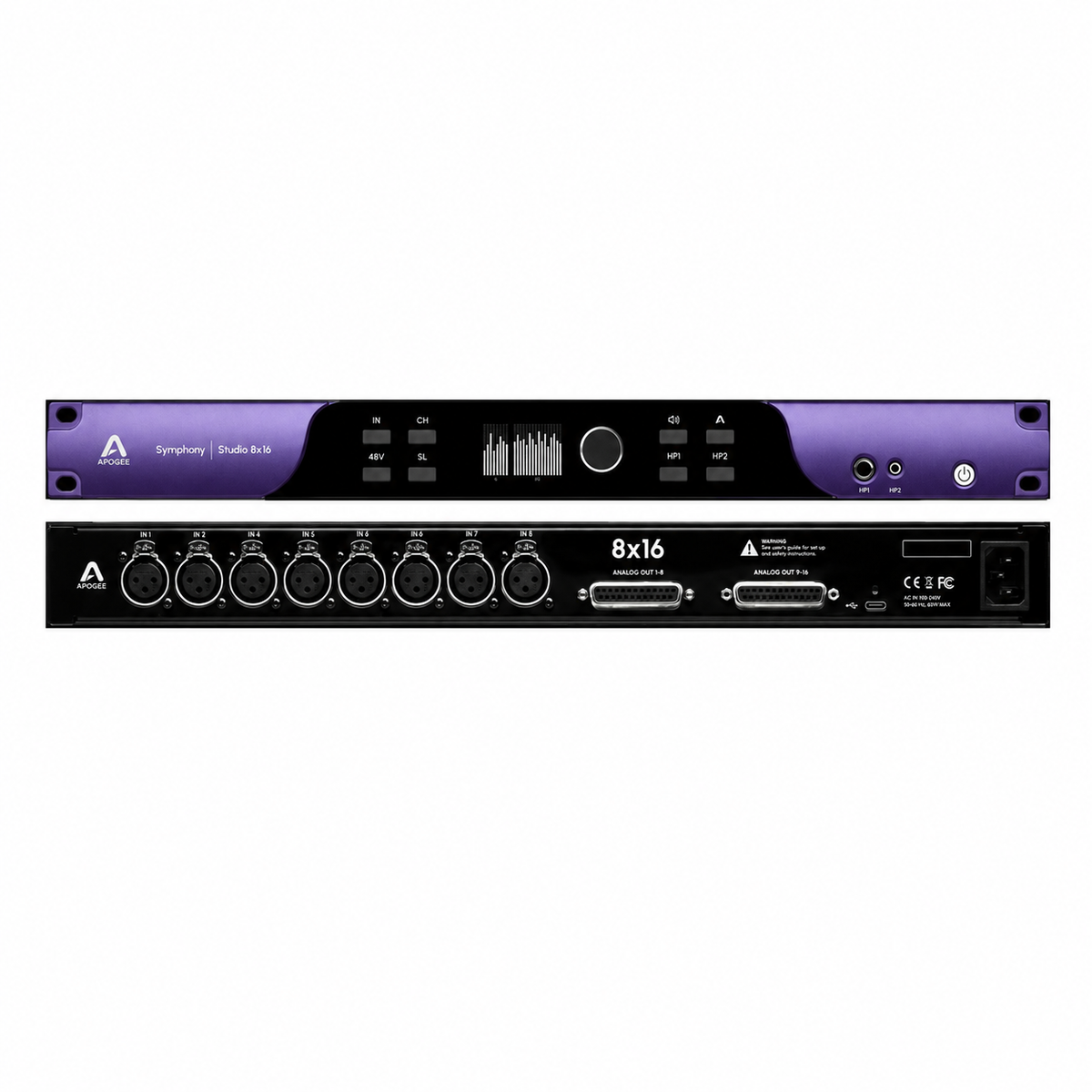

Apogee Symphony Studio 8x16 USB-C Audio Interface
Apogee Symphony Studio 8x16 USB-C Audio Interface
Couldn't load pickup availability
Premium member benefits
Premium Membership Save more with Premium Get 5% off eligible gear + earn 3% Rewards.PAC Product Snapshot
AI-assistedBased on manufacturer specifications.
- At a glance
- A Symphony Studio USB-C interface with eight mic preamps and 16 line outputs.
- Best for
- Multi-mic recording and mixing rooms with larger surround or immersive speaker systems.
- Why consider it
- Sixteen output channels give you room for speaker feeds, and DSP provides room calibration tools.
Before You Buy
Plan your speaker layout and output wiring first. Confirm the computer, breakout cabling, and monitor-control requirements.
More details
Before You Buy
- Match the interface connection, operating system and driver requirements to your computer.
- Count physical microphone preamps separately from total inputs and outputs.
Delivery & return information
Free standard shipping: no minimum on eligible contiguous U.S. orders.
Orders generally process within one business day, Monday–Friday, excluding holidays. Processing is separate from carrier transit. Backorders, special orders and supplier fulfillment may take longer; confirm timing before ordering for a deadline.
Shipping details · Return eligibility & fees · Check availability or delivery timing
Designed for professional recording, mixing, mastering, and post-production studios, the Apogee Symphony Studio 8x16 delivers flagship-inspired Apogee conversion, transparent microphone preamps, onboard input processing, and advanced monitor control through a professional 1U USB-C interface.
Its 8 mic/line inputs and 16 analog line outputs support detailed recording, outboard integration, and monitor systems up to 9.1.6 Dolby Atmos, while Room EQ, speaker delay, and bass management help adapt the monitoring system to the room.
Key Features
- 8 transparent mic/line preamps with up to 75 dB of gain
- 16 balanced analog line outputs through DB-25 connectivity
- 24-bit/192 kHz recording and playback
- Two independent low-impedance headphone outputs
- Symphony Studio Channel Strip input DSP with EQ, compression, and drive
- Output DSP with 16-band Room EQ, speaker delay, and bass management
- Eight customizable monitor workflows in Apogee Control 2
- USB-C class-compliant connection for supported Mac and Windows computers
- Switchable +4 dBu / -10 dBV line-output reference level
- Rugged 1U rackmount chassis with extruded aluminum faceplate
What’s in the Box
- Apogee Symphony Studio 8x16
- Locking USB-C cable
- IEC AC power cable
- Getting-started and warranty information
Compatibility Notes
- Requires a supported USB-C-equipped Mac or Windows computer.
- Current manufacturer requirements list macOS Ventura 13.6.8 or later and Windows 10 Anniversary Update or later; confirm current compatibility before purchase.
- DB-25 breakout cables and the optional Apogee Control hardware remote are sold separately.
- The interface is AC powered and is not bus powered.
Manuals & Documentation
Read the manufacturer documentation for this model, or save an available PDF for setup and technical reference.
